Single-frequency lasers play a critical role in applications requiring high spectral purity, narrow linewidth, and stable operation. Various configurations are used to achieve single-frequency laser output, each employing different methods for wavelength selection and stabilization. The most common types include External Cavity Lasers (ECL), Distributed Feedback (DFB) Lasers, Volume Holographic Grating (VHG)-Stabilized Lasers, Distributed Bragg Reflector (DBR) Lasers, and Hybrid Lasers.
Below, we explore their working principles, differences, advantages, and typical applications.
1. External Cavity Laser (ECL)
Overview

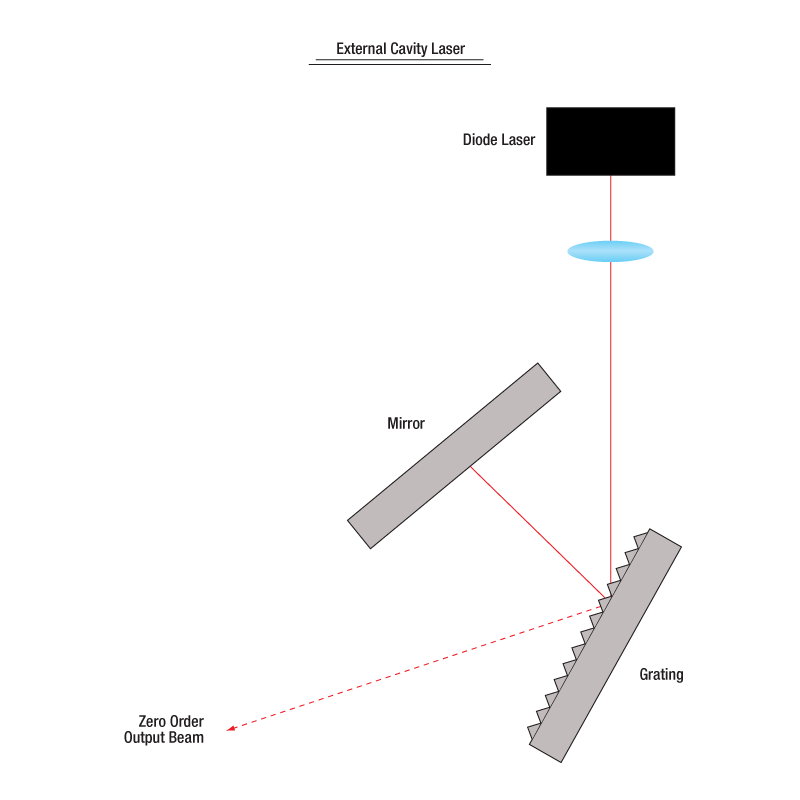

External Cavity Lasers (ECLs) are highly versatile, compatible with standard free-space diode lasers. They incorporate an external optical feedback mechanism via a diffraction grating or mirror outside the diode laser cavity. A collimating lens directs the laser beam onto the grating, which selects and stabilizes the emission wavelength.
Advantages
- Wide tuning range (>100 nm), allowing flexible wavelength selection.
- Extremely narrow linewidth (<1 MHz), making them ideal for precision applications.
- Customizable configurations with different cavity lengths and grating setups.
Disadvantages
- Susceptible to mechanical instability, leading to mode hops.
- Requires precise alignment of the optical components for optimal performance.
- Tends to have a slower tuning response compared to integrated designs.
Applications
- High-resolution spectroscopy
- Optical communications
- Quantum optics and atomic physics research
2. Distributed Feedback Laser (DFB)
Overview

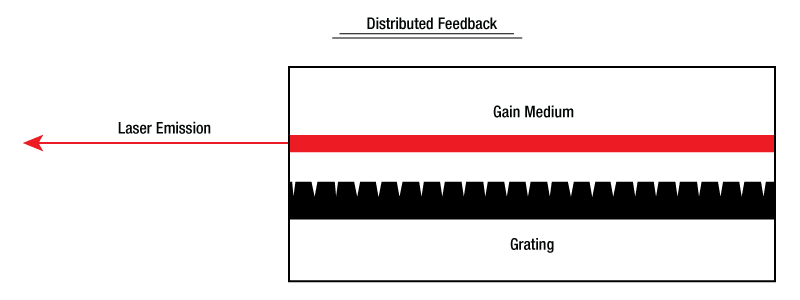

DFB lasers integrate a grating structure directly within the gain medium of the laser diode, serving as a built-in wavelength selector. The periodic structure acts as a Bragg reflector, selecting a single longitudinal mode for laser operation.
Advantages
- Continuous tuning range (e.g., ~2 nm at 850 nm, ~4 nm at 1550 nm).
- Compact and robust design, as all optical elements are monolithically integrated.
- No need for external optics, leading to a mechanically stable system.
Disadvantages
- Limited wavelength tunability compared to ECLs.
- Higher line broadening (1 MHz to 10 MHz linewidth), reducing spectral purity.
- Close coupling of the grating and gain medium results in lower output power compared to ECLs and DBR lasers.
Applications
- Fiber-optic telecommunications
- High-speed data transmission
- Sensing applications (e.g., environmental monitoring, gas detection)
3. Volume Holographic Grating (VHG)-Stabilized Laser
Overview

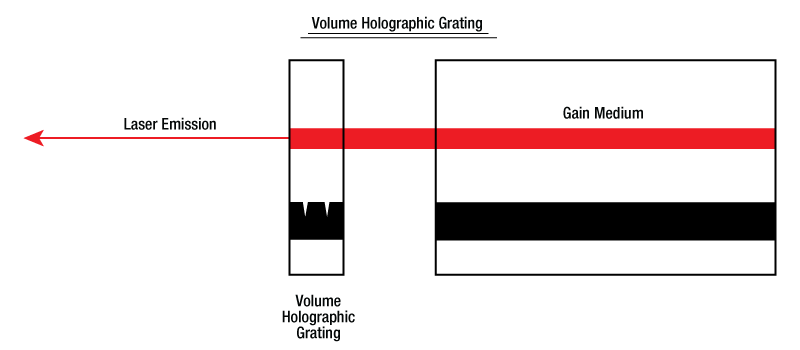

VHG-Stabilized Lasers use an external volume holographic grating (VHG), typically made of photorefractive material, placed in front of the laser diode output. This grating reflects only the wavelength that meets the Bragg condition, ensuring extreme wavelength stability.
Advantages
- Higher stability over varying temperatures and currents compared to DFB lasers.
- Narrow linewidth, often comparable to high-end DFB and DBR lasers.
- Can be wavelength-locked, ensuring consistent operation across different environments.
Disadvantages
- External grating adds complexity to the laser package.
- Limited in tuning range, as the wavelength is fixed by the grating structure.
Applications
- Wavelength-stabilized diode pumping
- Fiber lasers and amplifiers
- High-precision LIDAR and remote sensing
4. Distributed Bragg Reflector (DBR) Laser
Overview

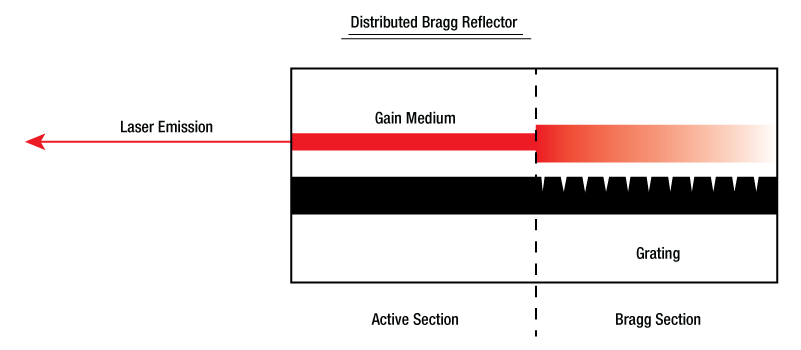

DBR lasers utilize an internal Bragg grating to provide optical feedback but differ from DFB lasers in the placement of the grating. While DFB lasers have the grating embedded along the entire gain medium, DBR lasers place the grating outside the active region, allowing for more precise phase tuning.
Advantages
- Higher tuning range (~30-40 nm) compared to DFB lasers.
- Phase-controlled designs allow independent tuning of wavelength and laser drive current.
- Higher output power than DFB lasers due to lower cavity losses.
Disadvantages
- Mode hopping can occur due to the external grating structure.
- Requires precise control of temperature and drive currents.
Applications
- Tunable laser sources for spectroscopy
- Optical fiber sensors
- Atomic physics and quantum technology
5. Hybrid Single-Frequency Lasers
Overview

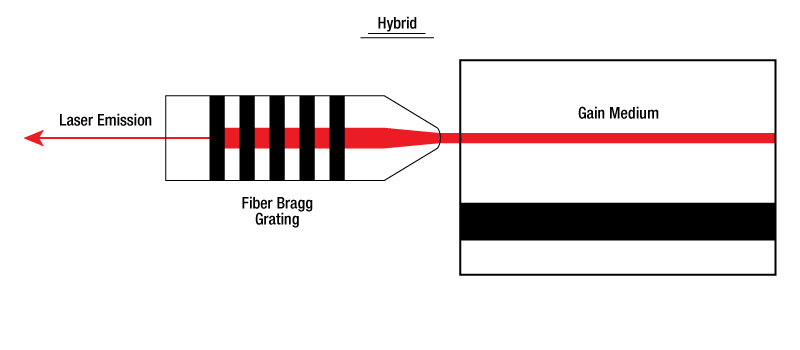

Hybrid lasers combine elements from multiple single-frequency laser types to optimize performance. A common example is fiber Bragg grating (FBG)-stabilized diode lasers, which feature an external fiber-based grating for spectral control.
Advantages
- Enhanced stability by thermally isolating the grating from the gain medium.
- Low noise characteristics, suitable for ultra-narrow linewidth applications.
- Can extend cavity length beyond standard diode structures, reducing phase noise.
Disadvantages
- Typically requires custom packaging and alignment.
- Performance characteristics depend on the stability of the fiber grating.
Applications
- Ultra-low-noise lasers for metrology and atomic clocks.
- High-stability telecommunications for coherent optical networks.
- Quantum computing and fundamental physics experiments.
Comparison Table: Single-Frequency Laser Technologies
| Type | Tuning Range | Linewidth | Power Output | Mechanical Stability | Typical Applications |
| ECL | Very wide (>100 nm) | Ultra-narrow (<1 MHz) | High | Moderate (mode hops possible) | Spectroscopy, quantum optics, telecom |
| DFB | Narrow (~2-4 nm) | 1-10 MHz | Low to moderate | High (integrated structure) | Fiber-optic communications, sensors |
| VHG | Fixed (wavelength-locked) | <1 MHz | Moderate | Very high (thermally isolated grating) | Laser stabilization, fiber lasers |
| DBR | Moderate (~30-40 nm) | <10 MHz | Higher than DFB | Moderate (prone to mode hops) | Tunable spectroscopy, fiber sensors |
| Hybrid | Customizable | Ultra-narrow | Moderate to high | Very high (fiber stabilization) | Metrology, atomic physics, quantum computing |
The selection of a single-frequency laser depends on the required wavelength stability, linewidth, tuning range, and application environment:
- ECL lasers provide the widest tuning range and narrowest linewidth, making them ideal for spectroscopy and precision research.
- DFB lasers are mechanically robust and suitable for telecom and sensor applications.
- VHG-stabilized lasers offer superior wavelength locking, preferred for pump sources and industrial applications.
- DBR lasers provide moderate tuning range and higher power output, often used in fiber sensing and spectroscopy.
- Hybrid lasers such as FBG-based systems deliver ultra-low-noise performance, used in quantum computing and optical metrology.
Each type has its strengths and trade-offs, making them suitable for different precision laser applications.
